NEW CONCEPT: iLUX Max, Slim, Accent

Oriel windows viewed differently: using a slender aluminium edge of just 60 mm, a minimalist and sleek design is achieved. With glass fitted to the sides, you can maximise the amount of daylight coming in and your outside view is extended sideways.

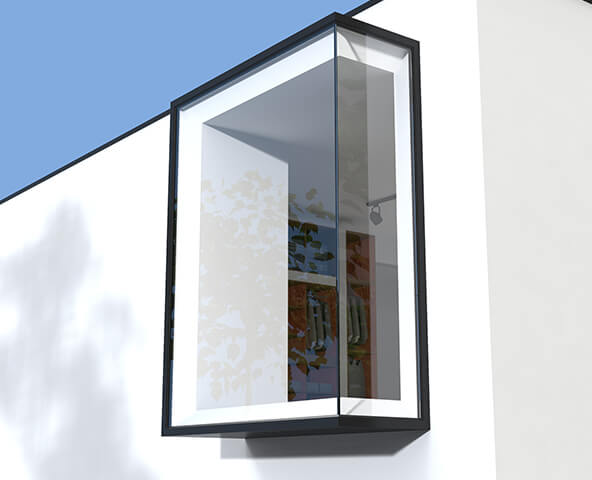

iLUX Max

The amount of light coming in is enhanced further by an inside profile with 45° faceting on each edge joint. The ceiling and floor finish are typically extended into the bay.
On top of that, this inside profile reduces the required insulation thickness, which has a U-value of less than 0.24 W/m²K for the floor and ceiling. Renson iLUX Max typically protrudes more than 400 mm from the façade and offers the possibility to realise an extra-large extension and view out sideways.

  • Wall and floor U-value < 0.24 W/m²K
  • iLUX Max typically runs floor to ceiling
  • Width: 1000 mm - 3000 mm (4000 mm upon request)
  • Height: 1500 mm - 3200 mm (6000 mm upon request)
  • Depth: 400 mm - 800 mm (801 mm - 1200 mm on request)
  • 3 glass sides available as an option

Download .dwg  › Download .pdf › Download specification sheet ›


Raamuitbouw Renson concept home

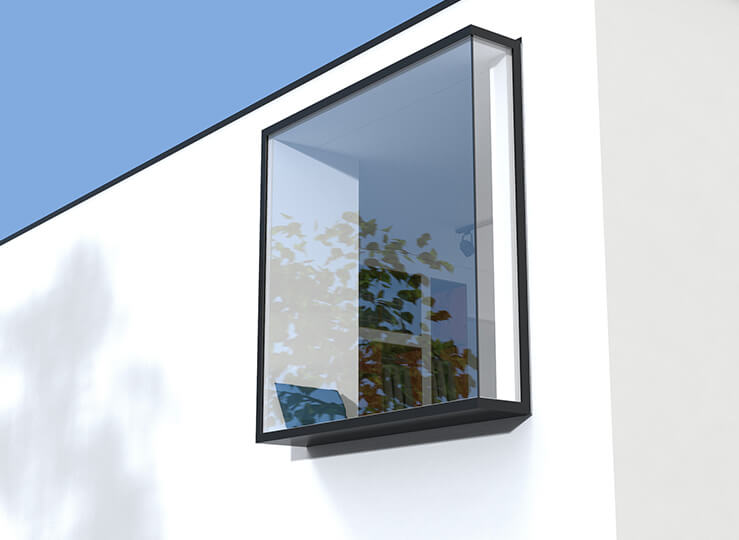

iLUX Slim

The ideal solution for creating a window seat. The insulation package goes together with the energy performance and indoor climate standards for structures protruding no more than 400 mm from the façade.

  • iLUX Slim is typically used as a window seat unit
  • Width: 400 mm - 6000 mm
  • Height: 400 mm - 2200 mm (6000 mm upon request)
  • Depth: 210 mm - 400 mm (401 mm - 800 mm upon request)
  • 3 glass sides available as an option (400 mm)

Download .dwg  › Download .pdf › Download specification sheet ›

Raamuitbouw Renson concept home

iLUX Accent

As the name suggests, this oriel window provides an extra accent to your home. The minimalist profile protrudes from the façade by just 65 mm to create a frame accent.

iLUX Accent also adds more depth to the windowsill on the inner side.

  • Width: 400 mm - 4000 mm (6000 mm upon request)
  • Height: 400 mm - 4000 mm (6000 mm upon request)
  • Depth: 65 mm
  • Glass front only

Download .dwg  › Download .pdf › Download specification sheet ›



Raamuitbouw Renson concept home

Quick-fit module saves time on site

The module is delivered to your building site fully finished, which saves a huge amount of time: your oriel window can be fitted in just a single day. Prefabrication of the module in factory conditions also prevents any wind and waterproof issues from occurring. On top of that, it ensures all thermal bridges are handled correctly.

snelbouwmodule zorgt voor tijdswinst op de werf
Peter Gilbert

Peter Gilbert
Project engineer

If you have a challenge or question for us, just let us know!

If you’ve got a project in mind in which this oriel window could make all the difference, fill in the contact form and let us know what we can do for you. We’re happy to work with you towards a solution that best meets your needs.
